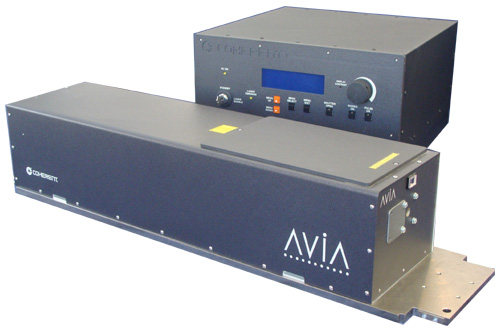

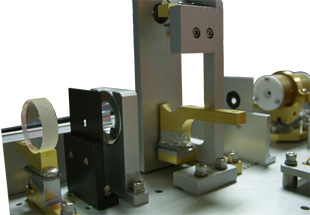

AVIA 532-301 |
AVIA 532-382 |
AVIA 532-453 |
Wavelength |
532 nm |
|
Output Power |
≥ 30W |
≥ 38W |
43W @ 90 kHz
45W @ 120 kHz
41W @ 150 kHz
37W @ 180 kHz |
Output Power
Stability
(average over 8 hours) |
< ±2% |
|
|
|
|
|
Pulse |
|
|
|
Repetition Rate
Nominal
Optimized |
Single Shot to 300
kHz
120 to 150 kHz
120 kHz |
|
Pulse Width |
< 60 ns |
|
Pulse-to-Pulse
Energy Stability |
< 5% rms 1σ |
|
|
|
|
|
Beam |
|
|
|
Divergence, Full
Angle
(ref. baseplate temp.) |
< 0.4 mrad |
|
Spatial Mode |
TEM00 (M2
< 1.3) |
|
Pointing Drift
(ref. baseplate temp.) |
< 25 µrad/°C |
|
Polarization Ratio |
> 100:1 Horizontal |
|
1/e2
Beam Diameter |
3.5 ± 0.35 mm |
|
Circularity |
> 85% |
|
Bore-sight Accuracy
(ref. mounting features on head) |
±1 mm & ±10 mrad |
|
Beam Exit Location
(XY ref. bottom/left baseplate) |
5.46 x 5.02 in
(138.68 x 127.51 mm) |
|
|
|
|
|
Operating
Conditions |
|
|
|
Warm-up time
(typical)
Stand-By
Cold Start |
< 15 min
< 40 min |
|
Ambient Temperature
During operation
Power off, short term |
+15°C to +35°C
-25°C to +65°C |
+10°C to +30°C
-25°C to +65°C |
Relative Humidity
(non-condensing) |
10 to 80% |
|
Cooling - Power Supply |
Air-Cooled |
|
Cooling - Laser Head
Flow
Rate, recommended
Temperature, recommended |
Water-cooled
1.5 to 2.0 gal/min
(5.7 to 7.6 l/min) |
Water-cooled
1.5 to 2.0 gal/min
(5.7 to 7.6 l/min)
18°C to 22°C |
Heat Load (max)
Laser Head
Power Supply |
800W
400 W |
900W
800 W |
|
|
|
|
Electrical |
|
|
|
Voltage
(auto-ranging)
Single-Phase, 3-Wire |
100 to 240 VAC |
|
Frequency
(auto-ranging) |
50 to 60 Hz |
|
Power Consumption |
800 to 1300 W |
900 to 1700 W |
|
|
|
|
Mechanical |
|
|
|
Weight
Laser Head
Power Supply |
110 lb (50 kg)
55 lb (25 kg) |
|
Umbilical Length |
15 ft (4.6 m) |
|
Dimensions, approx.
for shipping
(LxWxH)
Laser Head (w/o umbilical)
Power Supply
|
50 x 11 x 12 in
(127 x 28 x 31 cm)
22 x 20 x 10 in
(56 x 51 x 26 cm) |
|
|
|
|
|
